Explore the Unknown, Create Brilliance Together

Manufacture all kinds of portable detector instruments

Suppliers of various types of physical and chemical testing instruments

Offer all kind of inspection instruments all round the world, welcome to consult

Quick Response

All inquiries will be processed and answered in 24 hours.

In Stock

All popular & host selling models are in stock & ready to ship.

Competitive Price

Pre-stocking and large quantities purchasing to ensure our price advantage.

Payments

Multiple payment terms and payment methods can be negotiated

OUR PRODUCTS

VIEW MORE

ABOUT US

Sichuan Qianguan Technology Development Co., Ltd. is a professional engaged in various types of tubes, bars, plates, coils, and rings, such as bulk industrialization of automatic testing equipment research and development, and sales as one of the science and technology-based enterprises.

Since its inception, the company has always adhered to the development concept of “focus on the heart, casting excellence”, and quality management throughout the entire process of enterprise development, through the creation of leading technology to manufacture quality products to meet the needs of customers around the world. The company’s main R & D and production of the high-speed rotary ultrasonic inspection system, spiral forward ultrasonic inspection system, eddy current automated wound detection system, visual automated inspection system, diameter measurement automated inspection system, phased array inspection system, C scanning inspection system, hardness on-line inspection system, elemental sorting on-line inspection system, etc. are widely used in the aerospace, military, nuclear, iron and steel, electronics, automotive and other equipment manufacturing fields. Manufacturing field.

VIEW MORE

Our Inspection Instruments Applications

Qianguan inspection instruments offer different testing that include:

Gear Shaft

Gearbox Welding Gear

Alloy Tube Bar

Disc Ring Parts

Plate Sheet

Liquid Heat Sink

Bullet Shell, Core

Oil Drilling Rod

Petroleum Pipelines

Zirconium Metal Rod

Stainless Steel Tube

Gas Cylinder

Pressure Vessel

Electrode Sheet

Target Material

Export Trade

Our products have been exported to international markets such as Southeast Asia and the Middle East, and we have established a trustworthy, safe and worry-free transaction experience with our customers, from the first chat, trust building, cooperation initiation, deposit payment, packaging and shipment to the final acceptance.

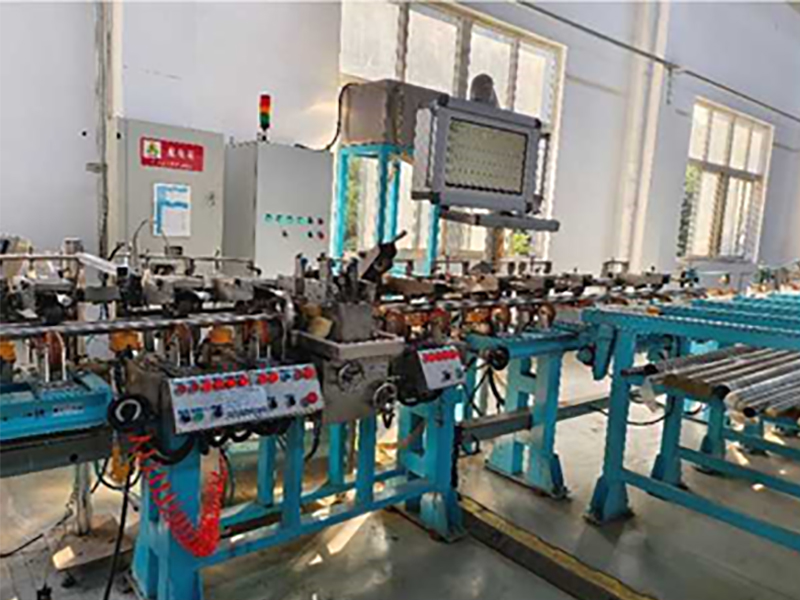

Ultrasonic Bar Inspection Process

Check our inspection process as following:

Step 1

Loading

Auxiliary loading of the inspected bar onto the loading table.

Step 2

Turning

Turning of the bar material onto the loading roller conveyor by means of a turning mechanism.

Step 3

Transports

The loading roller conveyor transports the bars to the inspection area.

Step 4

Detection

The bars are automatically detected in the inspection area and automatically recorded.

Step 5

Defective Labeling

Bars pass through the inspection area for air drying and marking of defects.

Step 6

Unloading

The unloading roller conveyor transports the workpieces to the unloading table.

Step 7

Testing completed

The unloading device sorts the test bars for pass/fail until the test is complete.

Why Choose Qianguan

Sichuan Qianlong Technology Development Co., Ltd. is a professional engaged in various types of tubes, bars, plates, coils, and rings, such as bulk industrialization of automatic testing equipment research and development, and sales as one of the science and technology-based enterprises.

View More

Experience

We have many on-site experiences in the testing industry and is involved in industries and products with high coverage.

Quality Assurance

Specialized R&D department including mechanical, electrical and design engineers, CNAS and Nadcap certified.

Service

Professional service team, including pre-sales service, sales service and after-sales service, to provide equipment lifelong technical service support.

Frequency Asked Questions

Here’s the Faqs, please check it out your questions as below:

Nondestructive testing is a method of inspecting and testing the structure, properties, state, and defect type, quantity, shape, location, and size of the internal and surface of the test piece by physical or chemical means, with the help of modern technology and equipment, without damaging or affecting the performance of the tested object or the internal organization of the tested object.

Utilizing the characteristics of ultrasonic waves, a transmitting probe is used to transmit ultrasonic waves to the surface of the inspected part through coupling, and when the ultrasonic waves propagate inside the inspected part and encounter different interfaces, they will produce different reflection signals (echoes). Using the time difference between the different reflection signals transmitted to the probe, defects inside the inspected part can be detected.

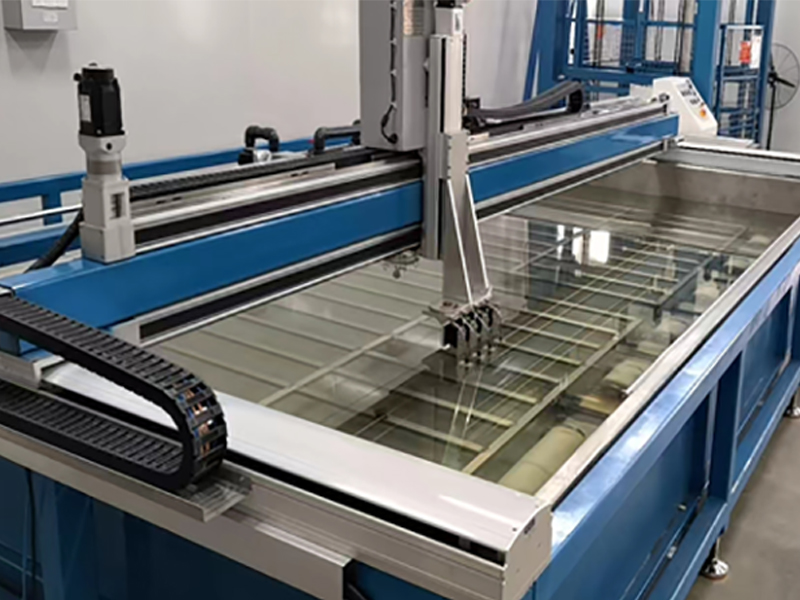

Water immersion flaw detection is a method of ultrasonic testing characterized by the use of water as a coupling agent between the workpiece and the probe. The probe is not in direct contact with the workpiece, and ultrasonic waves are introduced into the workpiece through the water for flaw detection.

Detection of defects including surface, internal, organization, etc.
(1) Internal defects include cracks, inclusions, shrinkage, pores, unwelded holes, etc;
(2) Surface cracks, folds, scratches, pits, etc.
(3) Structural defects including unqualified weld size, biting edge, burn through, unfused, etc;
(4) Material defects including coarse grain, excessive impurities, unqualified mechanical properties, etc.

Usually use the plane meander sweep and spiral sweep two ways.
(1) Meander sweep generally refers to the same plane, the probe and the workpiece to form a straight line back and forth sweep to the completion of the test, the general detection of the type of workpiece for the plate.
(2) Spiral sweep refers to the probe and the workpiece to form a relative spiral detection of the way, that is, the probe rotates the workpiece straight-line
Forward or the probe is stationary workpiece rotation to form a relative spiral sweep, the general detection type for the pipe bar.
